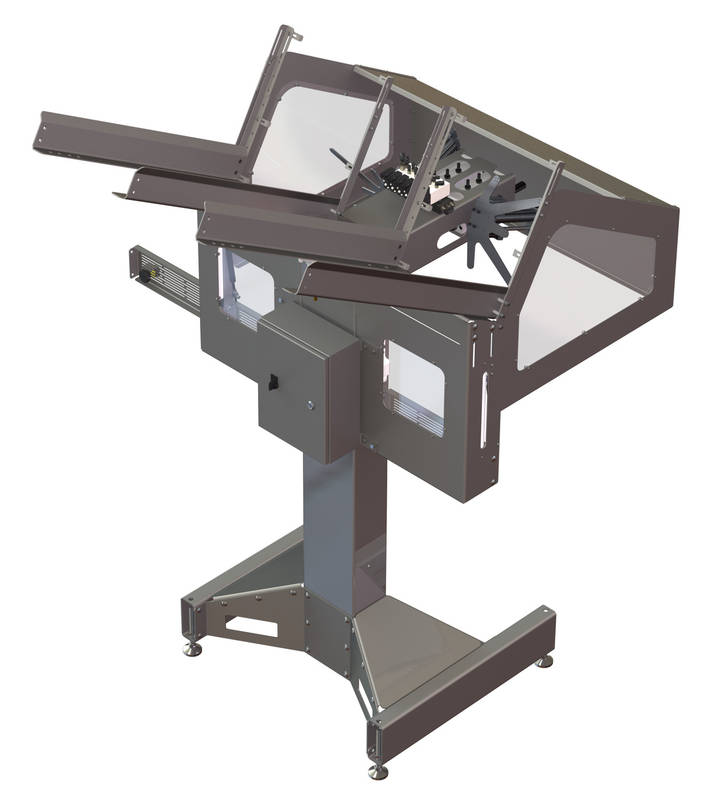

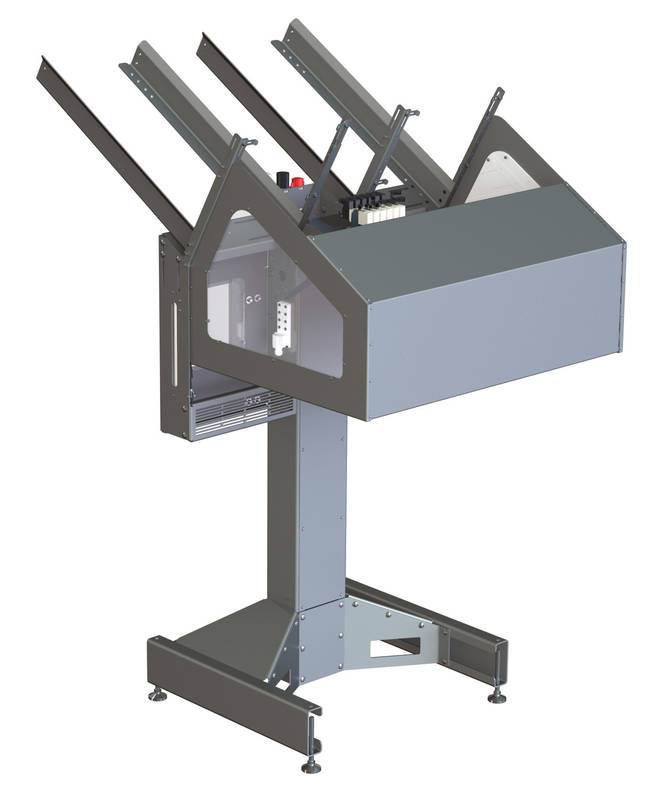

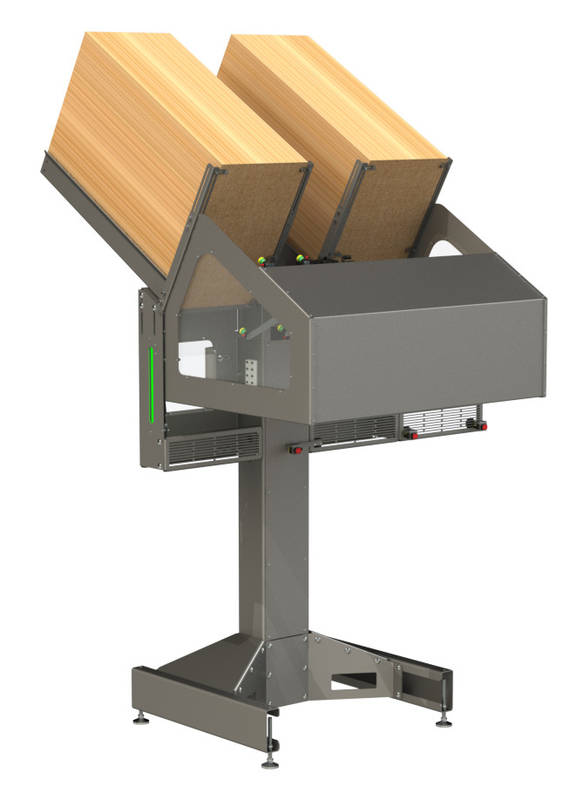

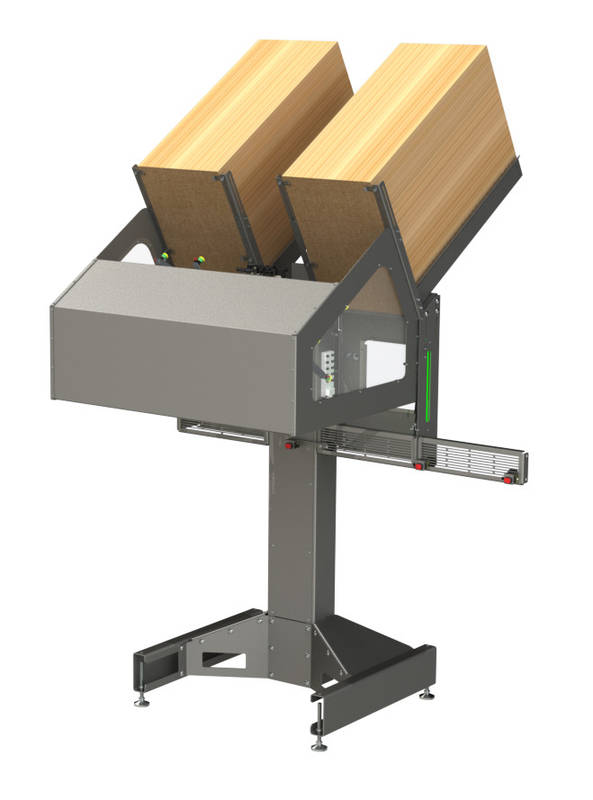

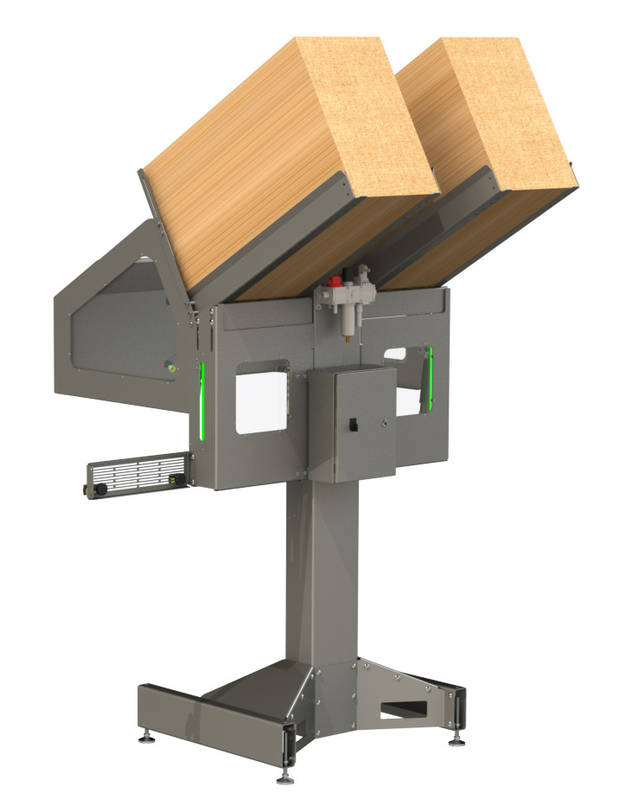

Pad Inserter

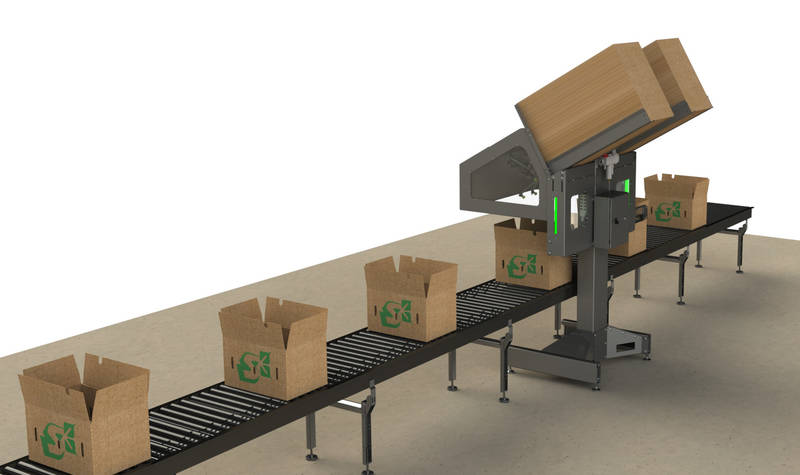

H.R Spinners Pad Inserter was designed as an integrated solution to place protective shipping pads in the agriculture market. These pads protect fruit and produce from bruising when shipping around the world. This fully automatic inserter can place two unique size pads in their respective packages during production.

Features Specifications Resources Request a Quote

Standard Features

H.R Spinner's Pad Inserter supports cushion pads for industry's including but not limited to:

Max Speed (Pads/Min) 40+
Magazine Length 38"
Magazine Capacity 400 pads/hopper
Machine Foot print 66" x 66"
Magazine Height Custom
Discharge Height Custom
Frame to floor Clearance 2"-8"
Frame Fastened Stainless Steel
Cleaning All purpose solvents
Finish Stainless Steel
Enviorment Dry, indirect washdown
Max Ambient Temp 120°F
Min Ambient Temp 32°F
Electrical Componets IDEC
Nema Rating  4X
Electrical Drops 1
Main Electrical Drop 120V/5A
Est. Amp Load 5 Amp
Air 5 cfm @ 60 psi (40 pads/minute)


Request a Quote
