| Specs | |
| Max Speed (cpm) | 36 |
| Min Speed (cpm) | 10 |
| Min Case Size (footprint) | 4" x 6" |
| Max Case Size (footprint) | 36" x 36" |
| Min Flange Width | 1.5" |
| Max Flange Width | 4" |

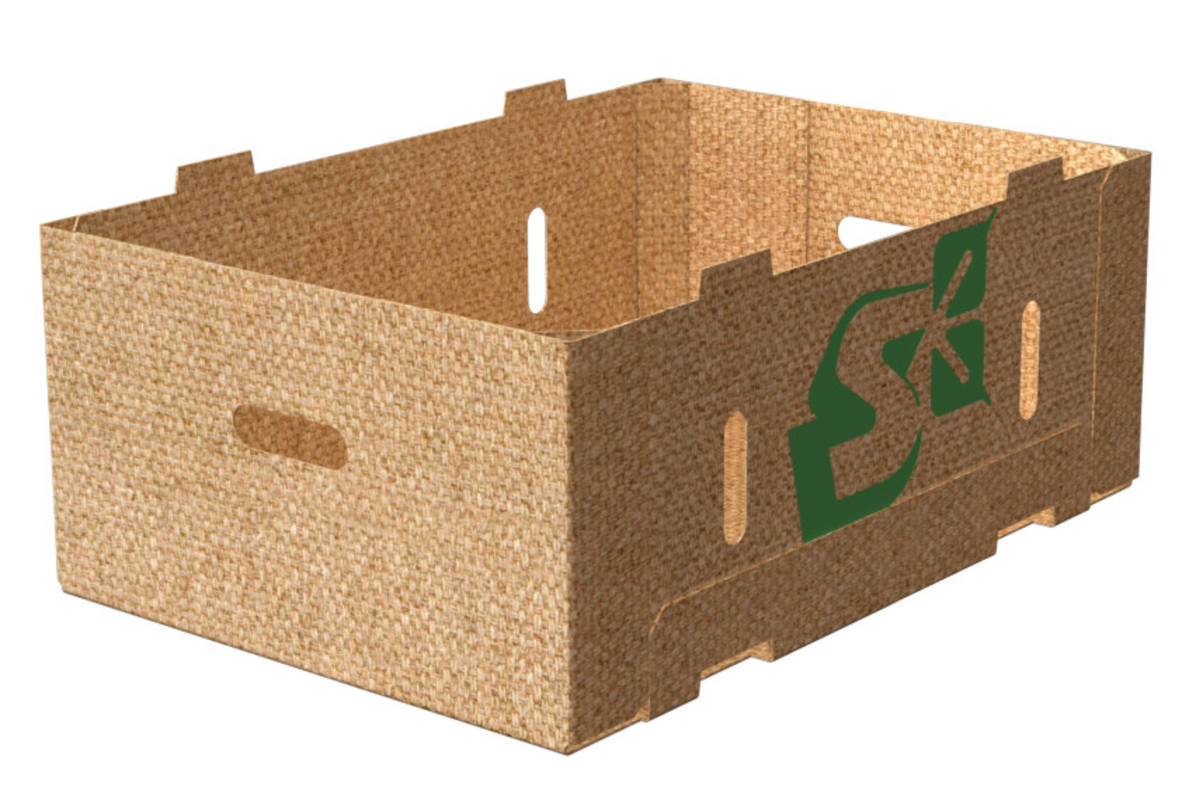

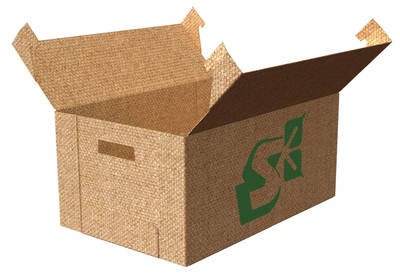

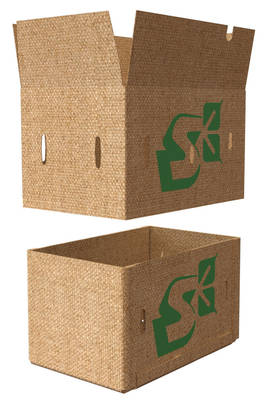

| Case Types | Bliss, Diagonal Corner Internal Flange, Internal Flange with Lid |
| Magazine Length | 33.5" |
| Magazine Capacity | 260 Single Wall Trays |
| Machine Foot print | 73" x 60.5" (T-4) / 85" x 60.5" (T-6) |
| Magazine Height | 54"-80" |
| Discharge Height | 23.5"-26.5" |
| Frame to floor Clearance | 3.125" |
| Frame | Heavy Gauge Welded Steel |
| Cleaning | All purpose solvents |
| Finish | Powder Coated |
| Enviorment | Dry, indirect washdown |
| Max Ambient Temp | 120°F |
| Min Ambient Temp | 32°F |

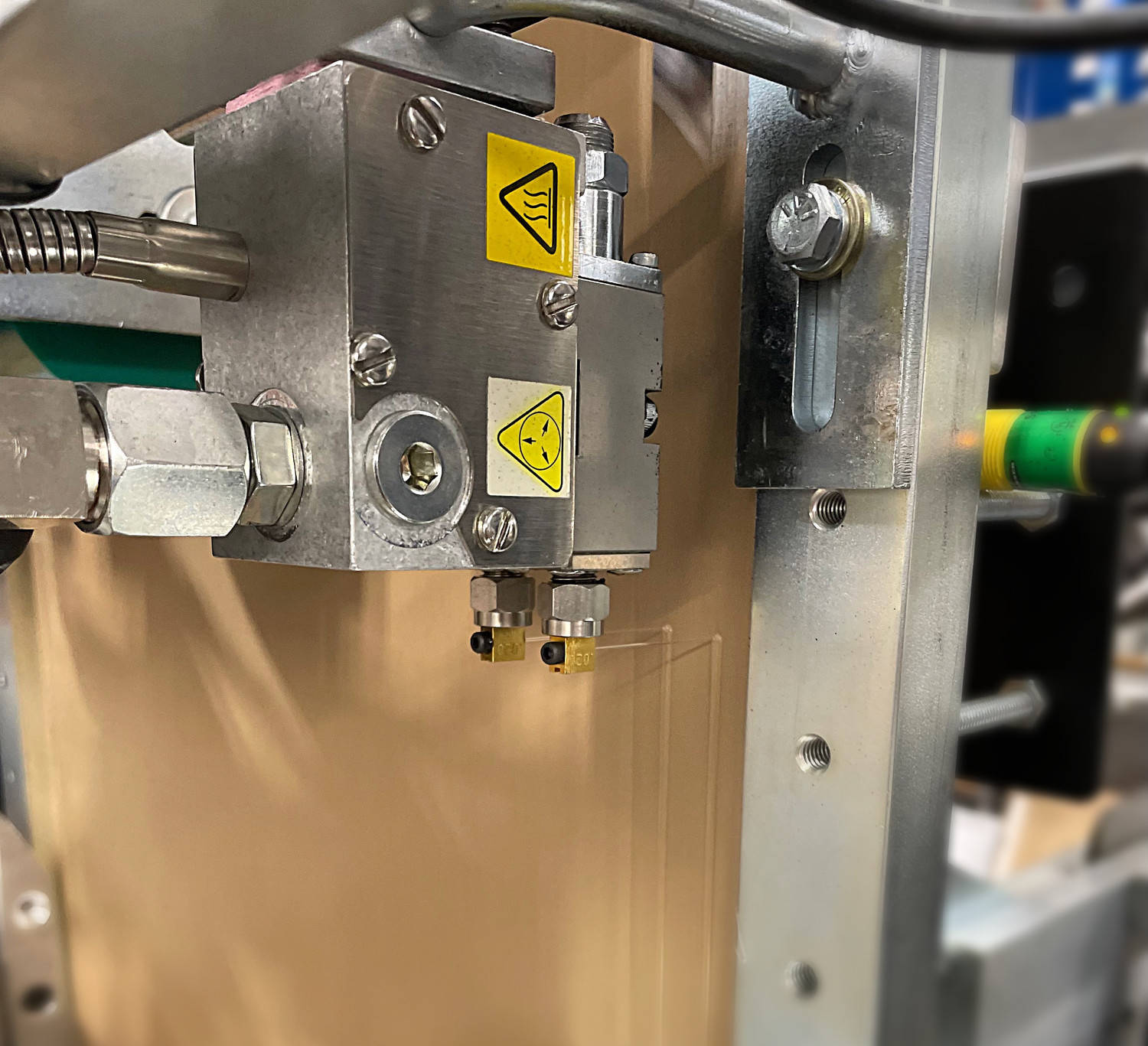

| Glue System | Nordson Mesa |
| Electrical Componets | Allen Bradley, Eaton, Mitsubishi |
| Nema Rating | 4X |
| Electrical Drops | 1 |
| Main Electrical Drop | 30 Amp Rated Disconnect |
| Est. Amp Load | 30 Amp |
| Air | 10 cfm @ 80 psi |
